On Grid/ Grid-tie Solar Inverters

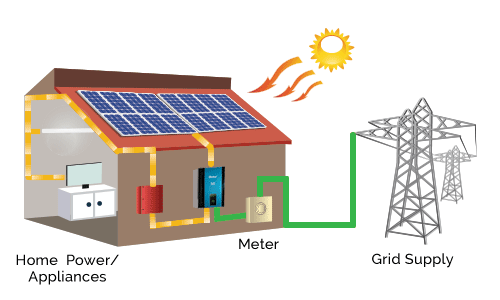

Take advantage of net metering policy in your state by selling solar electricity to Government through grid-tie solar installation at your home or office. Su-Kam’s grid-tie solar inverter is designed to generate maximum solar power with efficiency of 98% and work in even most extreme weather conditions.



Grid-tie solar installation is the best way to get ROI in the shortest period of time – just 3 - 5 years!



Available range: 1.5 KW-SM, 2 KW-SM,  3 KW-SM, 5 KW-DM, 10 KW-DM, 20 KW-DM, 30 KW-TM and 50 KW –TM.





Features:



• 97% Efficiency Through Latest MPPT Technology

• Su-kam’s grid-connected solar inverters work on a wide range ie. 15v-500v for 1.5kva-5kva inverters and 200v to 850v for 10kva to 50kva inverters. It means that they are able to generate solar power even during periods of low sunshine.

• Sukam Grid-tie solar Inverters has latest dual MPPT (Maximum Power Point Tracking) technology.

• Robust enclosure, with IP65 rating - suitable for outdoor Installation

• Our grid-tie inverters are light-weight because of being transformer-less. They can be easily mounted on wall. As grid-tie inverters are battery-less systems, you do not need to worry about maintenance. Just plug and forget!

• You can easily find out what’s going on inside your solar inverter through messages on LCD screen. You can check for units of electricity being made, input and output voltage etc.

• Versatile communication interface - RS485, RS232

• Grid-tie inverters  can also be connected to PV Remote Monitoring Kit – another brilliant product by Su-Kam. This monitoring kit helps you keep a check on your solar system from anywhere in the world. You can only monitor the performance of your solar system  but also keep a record of up to 25 years – ie throughout the entire lifetime of the system.

Certification

EMC standards: EN61000-6-1/2/3/4 ; EN55022, EN61000-3-2, EN61000-3-12, EN61000-3-3, EN61000-3-11
